CRT Shader Showcase for RetroArch

In the early days of Emulation, simulating CRT characteristics was achieved by filters that manipulated the produced game image before showing on the screen. However, the result was not very accurate and often quite taxing on the CPU. With the advent of Shaders, this problem was solved.

Skip to Side by Side section

Skip to Full Sized section

We have come far when it comes to accurately emulating classic game consoles and computer systems. But there is a missing piece in that equation: the output to a screen device. Games on a CRT TVs and monitors just look drastically different than on modern LCD or LED screens with fixed pixel sizes. This aspect has to be simulated in a different way. Shaders are much more sophisticated and allow realistic and complex filters rendered on the graphics card. Nowadays we have a lot to choose from advanced solutions. Thanks to the integration into RetroArch, Shaders can be utilized by most, if not all, cores. This article is about CRT based Shaders only, ignoring handheld or other types such as painted look.

My setup and what has been compared

My resolution setup

  • My desktop and emulation resolution is set to 2560 x 1440, which allows me to use basically any Shader. Some Shader require high resolution and won’t work on lower. 4k is probably the optimal resolution, but I don’t have such a screen.
  • The image scaling of the cores are all set to integer type, which means that no uneven number of pixels are added and depends on the original resolution.
  • The output image of the core is set to 4:3, because CRTs had this format. This will stretch the image generated by the core, which is what happened on real machines connected to the TV.
  • Bilinear filtering is disabled globally and no other filter is used in the core settings.

As a consequence of these resolution settings some black borders on top-bottom and left-right on the screen will be visible, because the image is not stretched to fill entire screen.

Early concept art sketch
of the Midgar Town Square
in Final Fantasy 7

What has not been compared

  • no other type of Shaders: only CRT type of Shaders that come as a default with RetroArch are included
  • no overlays or borders: Shader with borders are ignored
  • no configuration tweaking: only default settings for the Shaders from RetroArch are used
  • no performance test: some are slow and may require a modern pc, others are very fast and optimized for low power devices
  • no motion: some Shader properties such as flicker or motionblur are not optimally pictured in still images
  • no other resolution: some Shader require high resolution to look great, others are designed for low resolution in mind too
  • no combination: some Shader are designed to be combined with others in mind and don’t look good on their own
  • no other systems tested: different systems like vertical arcade or monochrome vector games and even handhelds require special treatment
  • no other format of Shaders: on my PC the Shader formats that offered to me are in the .slang format only

List of included Shaders (28+2)

Nearest and Bilinear filtering aren’t actually CRT Shaders, but are included as a reference. I got most of the description from Libretro Docs: Shaders, Libretro Docs: CRT Royale, Emulation General Wiki: CRT shaders and Hunter K’s Filthy Pants Blog: More CRT Shaders.

NameFilenameNotes

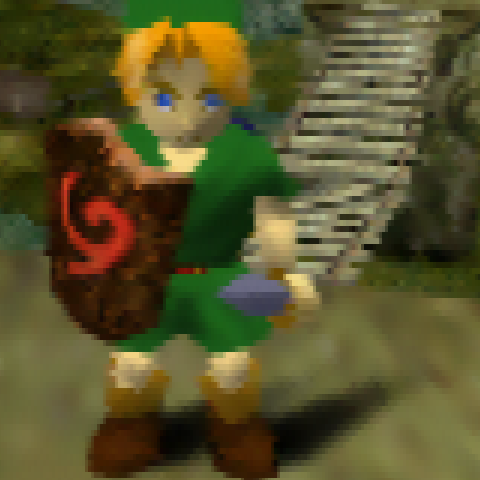

Nearest
nearest.slangpNone. Shader disabled.
Bilinear
bilinear.slangpResampling based on simple linear interpolation.
Aperture
crt/crt-aperture.slangpHigh quality aperture grille look, like a PVM. Still looks good at non-integer scales.
Easymode
crt/crt-easymode.slangpLightweight, but good looking, even at non-integer scales. Easy to understand settings.
Frutbunn
crt/crt-frutbunn.slangpPort of “Another CRT Shader” at shadertoy. Includes scanlines, curvature and vignette.
Geom
crt/crt-geom.slangpOne of the first popular Shaders by cgwg. Has many options and variations and simulates an aperture grille display. Still looks good and is even usable at non integer scales.
Guest Advanced
crt/crt-guest-advanced.slangpGood looking and very advanced. Has ton of options to tweak and comes in many variations. Requires strong hardware. Formerly known as Guest Dr Venom
Hyllian
crt/crt-hyllian.slangpFast and nice looking one, with only a few options. Does not try to degrade image quality and comes in a few variations. Runs very well on low end hardware.
Lottes

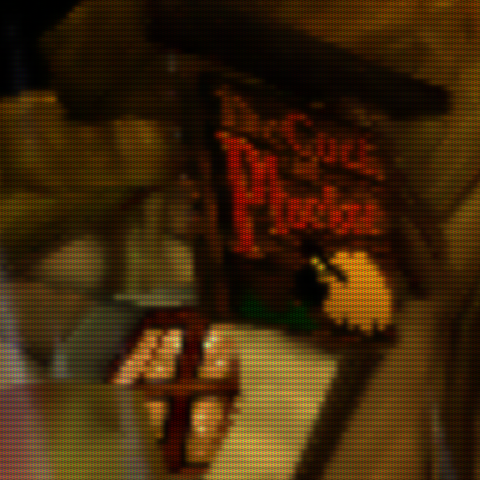

crt/crt-lottes.slangpAims to look like “a really good CGA arcade monitor with RGB input”. Uses horizontal shadow mask with bloom, but has not many options and is a bit slow. Faster variants are available.
NES Mini
crt/crt-nes-mini.slangpImitates the TV-style Shader from Nintendos NES Classic Mini console. Basically just some light scanlines, nothing fancy. Therefore runs on anything.
Pi
crt/crt-pi.slangpDesigned to run full speed on older Raspberry Pi models at 4:3 aspect ratio and 1080p resolution. Looks good for it’s performance and can be used on any weak hardware.
Potato warm

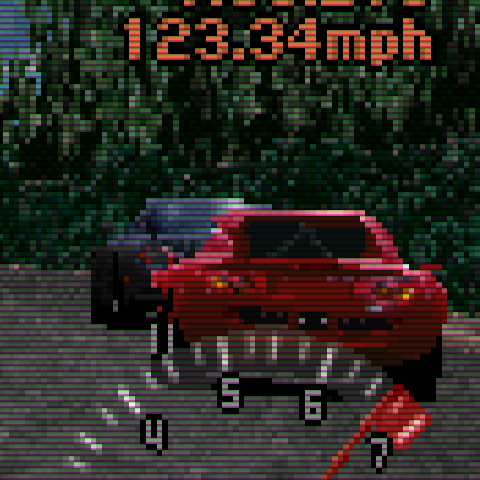

crt/crt-potato-warm.slangpTries to imitate in a very simple and fast way the popular Royale Kurozumi Shader. Runs very fast on anything, but does not look as good.
Royale
crt/crt-royale.slangpA very advanced Shader that simulates almost every aspect of a CRT screen. It looks very good and has ton of options to tweak and set, even changing the phosphor type is possible. While it can look fine on 1080p resolution, it requires at least 1440p or higher to make it truly shine. This one is slow and requires strong hardware. Comes in many variants too.
Torridgristle
crt/crt-torridgristle.slangpVery fast and high contrast CRT style, with a strong phosphor effect.
yo6-KV-M1420B

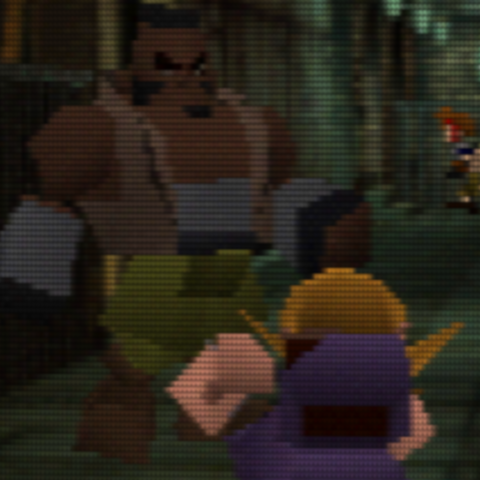

crt/crt-yo6-KV-M1420B.slangpThis Shader is based on data from a specific real model and size of a CRT display. The final image looks quite realistic.
CRTGlow Gauss

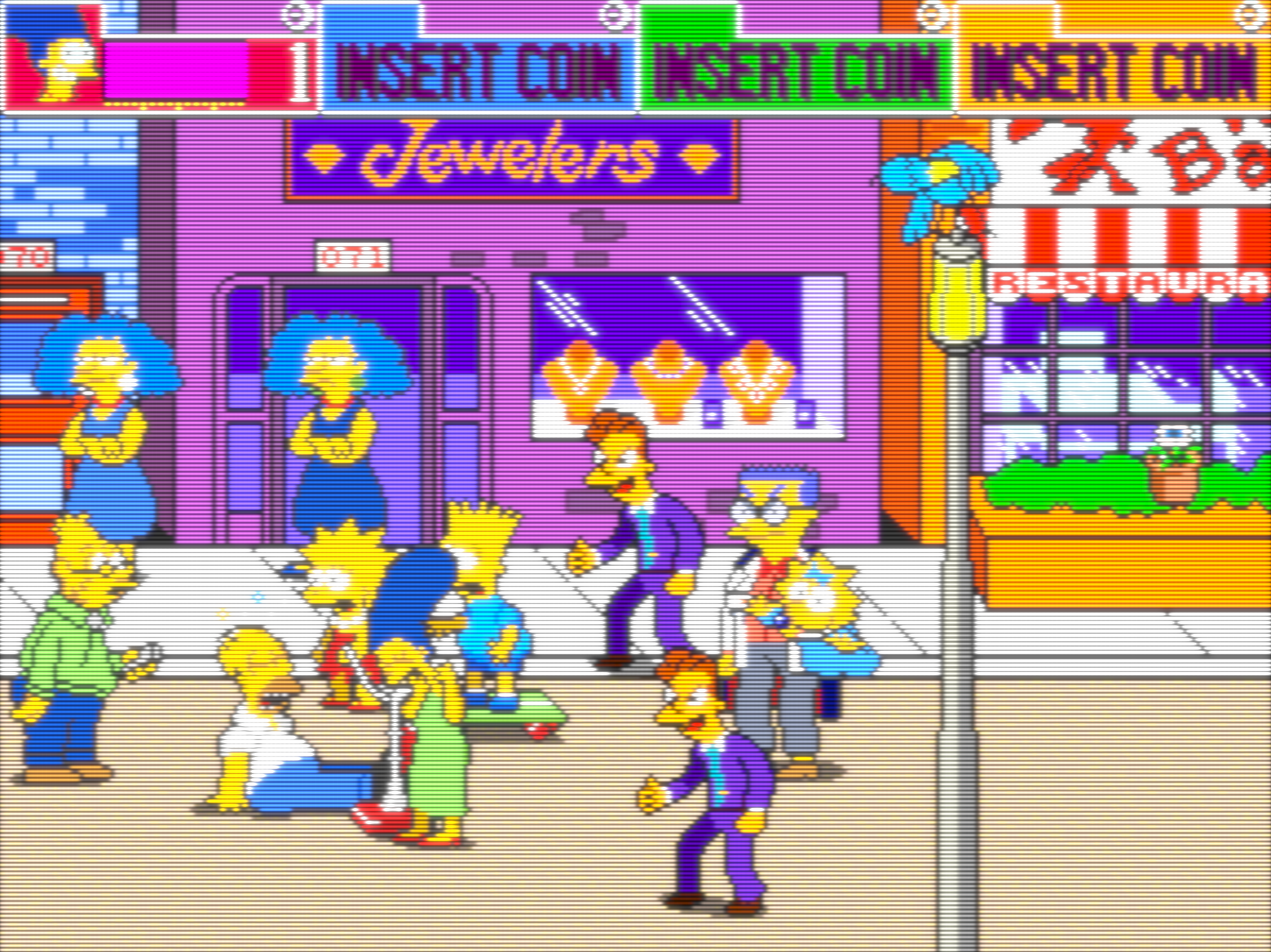

crt/crtglow_gauss.slangpEmphasizes the rounded edges of scanlines and has a strong look to it. There are a few variants available.
GTU v050
crt/gtu-v050.slangpFocuses on blurring the image in a convincing way, ignoring scanlines, phosphor effects or any curvature. Highly configurable and can be set anything between sharp to very blurry.
MAME HLSL

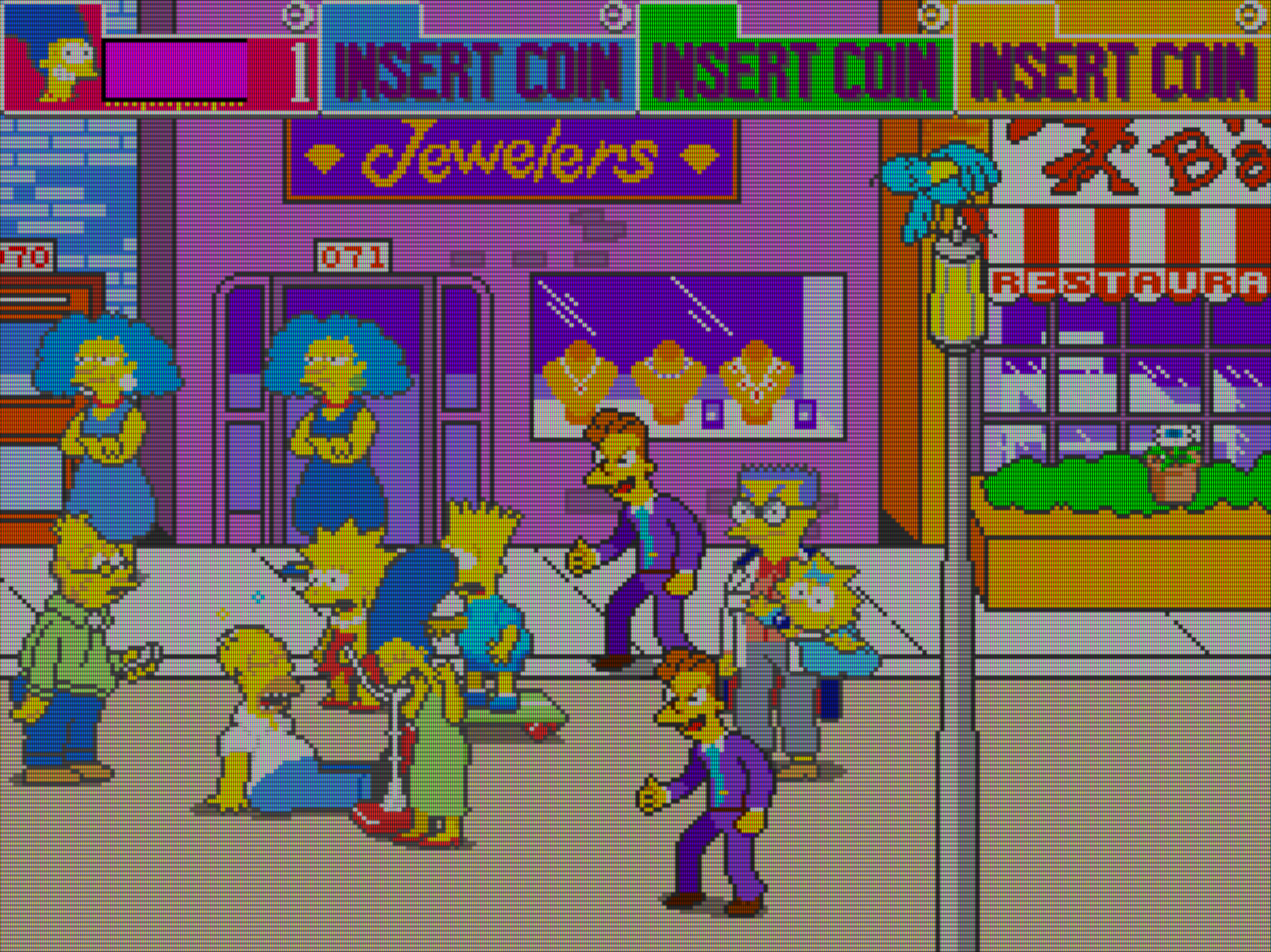

crt/mame_hlsl.slangpPort of the MAME’s built-in HLSL shader. Looks fine and comes with a variety of options.
NewPixie
crt/newpixie-crt.slangpBased on and an extended variant of Mattias Shader. Notable for it’s crawling/scrolling scanlines.
Yeetron

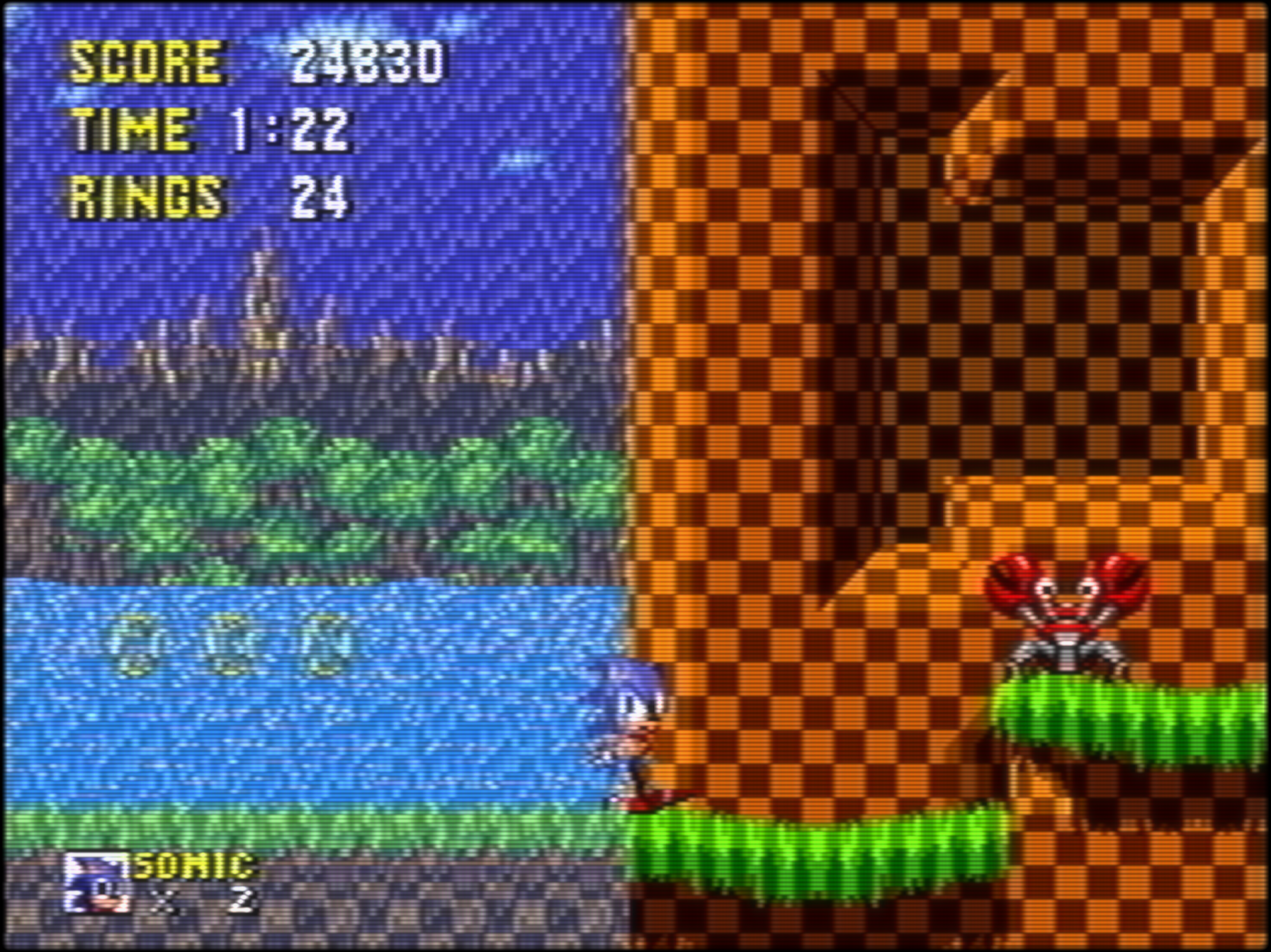

crt/yeetron.slangpImitates the CRT effect from the Sonic Mania PC game. Looks good for it’s performance and runs well on weaker hardware.
ZFast

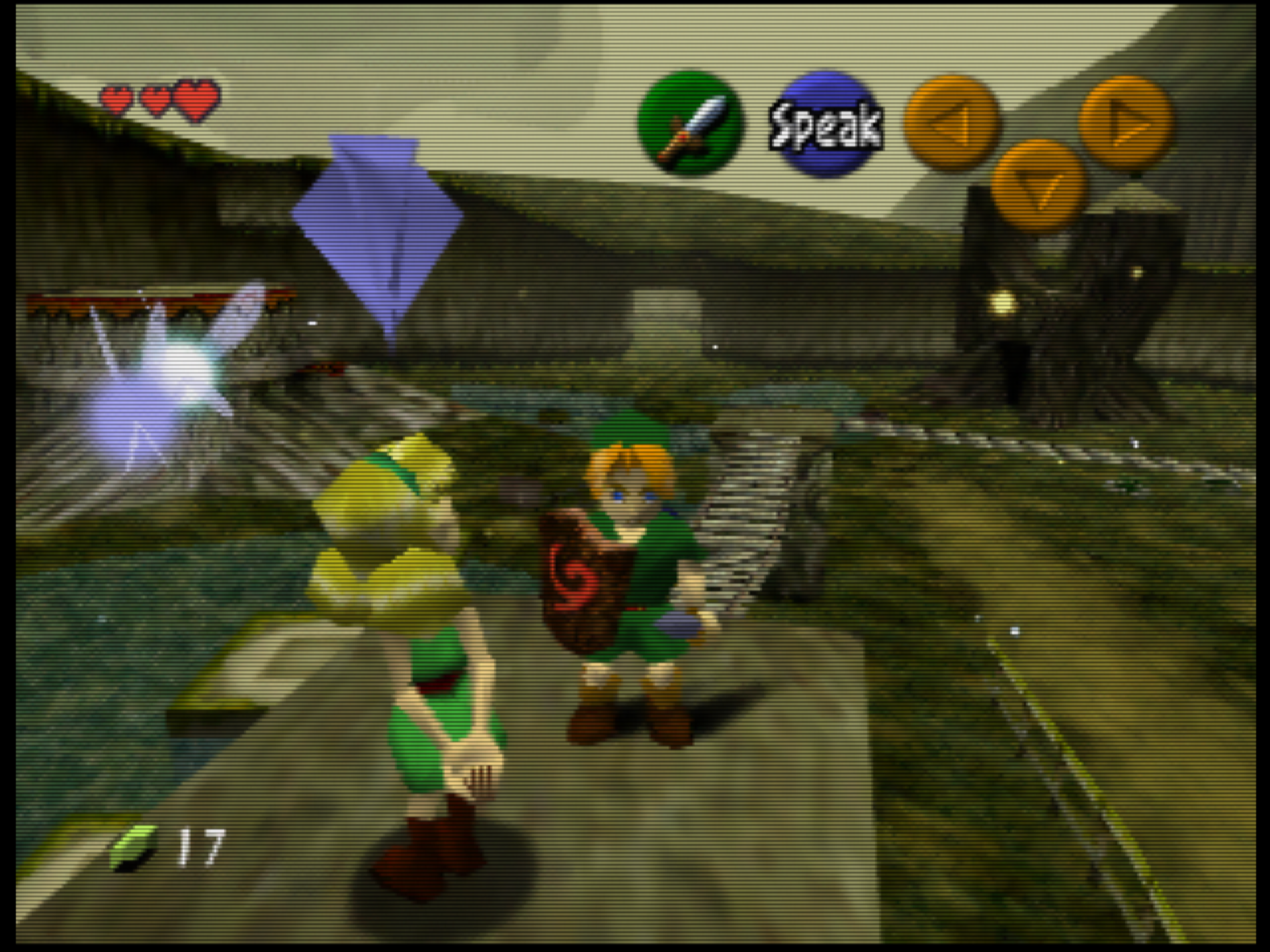

crt/zfast-crt.slangpRuns fast on weak hardware and looks fine at the same time.
C64 Monitor
presets/c64-monitor.slangpTries to simulate a typical Commodore 64 monitor. Uses Lottes and adds some artifacts to it.
Geom Deluxe NTSC Adaptive
presets/crt-geom-deluxe-ntsc-adaptive.slangpAn upgraded version of the regular Geom Shader, but slower and packed with much more options. This is the variant with typical NTSC artifacts.
Guest Dr Venom Kurozumi
presets/crt-guest-dr-venom-kurozumi.slangpBased on an older version of Guest Advanced, but a variant that adds the popular Kurozumi effect, to look like a professional CRT PVM/BVM.
Guest Dr Venom MaxDR
presets/crt-guest-dr-venom-maxDR.slangpBased on an older version of Guest Advanced, but a variant that tries to simulate a PVM/BVM and the goal of maximizing the dynamic range of the image. For best results, set your LCD backlight to 100%.
Hyllian Curvature NTSC
presets/crt-hyllian-curvature-ntsc.slangpBased on regular Hyllian, but a variant that adds curvature and typical NTSC artifacts.
Royale Kurozumi
presets/crt-royale-kurozumi.slangpBased on regular Royale, but a variant that adds the popular Kurozumi effect, to look like a professional CRT PVM/BVM.
Royale NTSC SVideo
presets/crt-royale-ntsc-svideo.slangpBased on regular Royale, but a variant that adds the effect of typical NTSC colors and a degraded Super Video connection.
Royale PAL r57shell

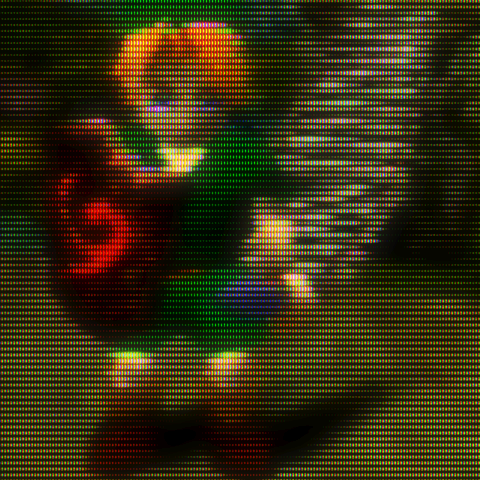

presets/crt-royale-pal-r57shell.slangpBased on regular Royale and combines it with the standalone PAL r57shell, which simulates a NES PAL composite signal.
Royale xm29plus
presets/crt-royale-xm29plus.slangpBased on regular Royale, but a variant that simulates characteristics of a specific real PVM CRT, the NEC XM 29 Plus. A high-end arcade and PC monitor.
The paths are relative to the standard “shaders/shaders_slang” directory of RetroArch.

Let’s we go: Side by Side

The meat of this article. Use the slider to overlap and view parts of the comparing images. There are so many screenshots, so I chose a few (5 to be exact) different Shader per game and compare their 100% crops. Nearest is basically the look without any Shader or filter, Royale is my favorite and one that is very popular. It will be compared at first in all games for base reference. Have fun.

Overview of included games and cores (2*5)

Note: Click the game title in the table to jump directly to corresponding section.

GameSystemCoreLibretro Filename
👇 Super Mario WorldSuper NintendoMesen-Smesen-s_libretro.so
👇 Chrono TriggerSuper NintendoMesen-Smesen-s_libretro.so
👇 SonicMega DriveGenesis Plus GXgenesis_plus_gx_libretro.so
👇 Streets of Rage 2Mega DriveGenesis Plus GXgenesis_plus_gx_libretro.so
👇 Super Street Fighter 2ArcadeFinalBurn Neofbneo_libretro.so
👇 SimpsonsArcadeFinalBurn Neofbneo_libretro.so
👇 Final Fantasy 7PlaystationBeetle PSX HWmednafen_psx_hw_libretro.so
👇 Gran Turismo 2PlaystationBeetle PSX HWmednafen_psx_hw_libretro.so
👇 Zelda – Ocarina of TimeNintendo 64Mupen64Plus-Nextmupen64plus_next_libretro.so
👇 Conker’s Bad Fur DayNintendo 64Mupen64Plus-Nextmupen64plus_next_libretro.so
The filenames are on Linux found in the “cores” directory of RetroArch and may differ depending on your OS.

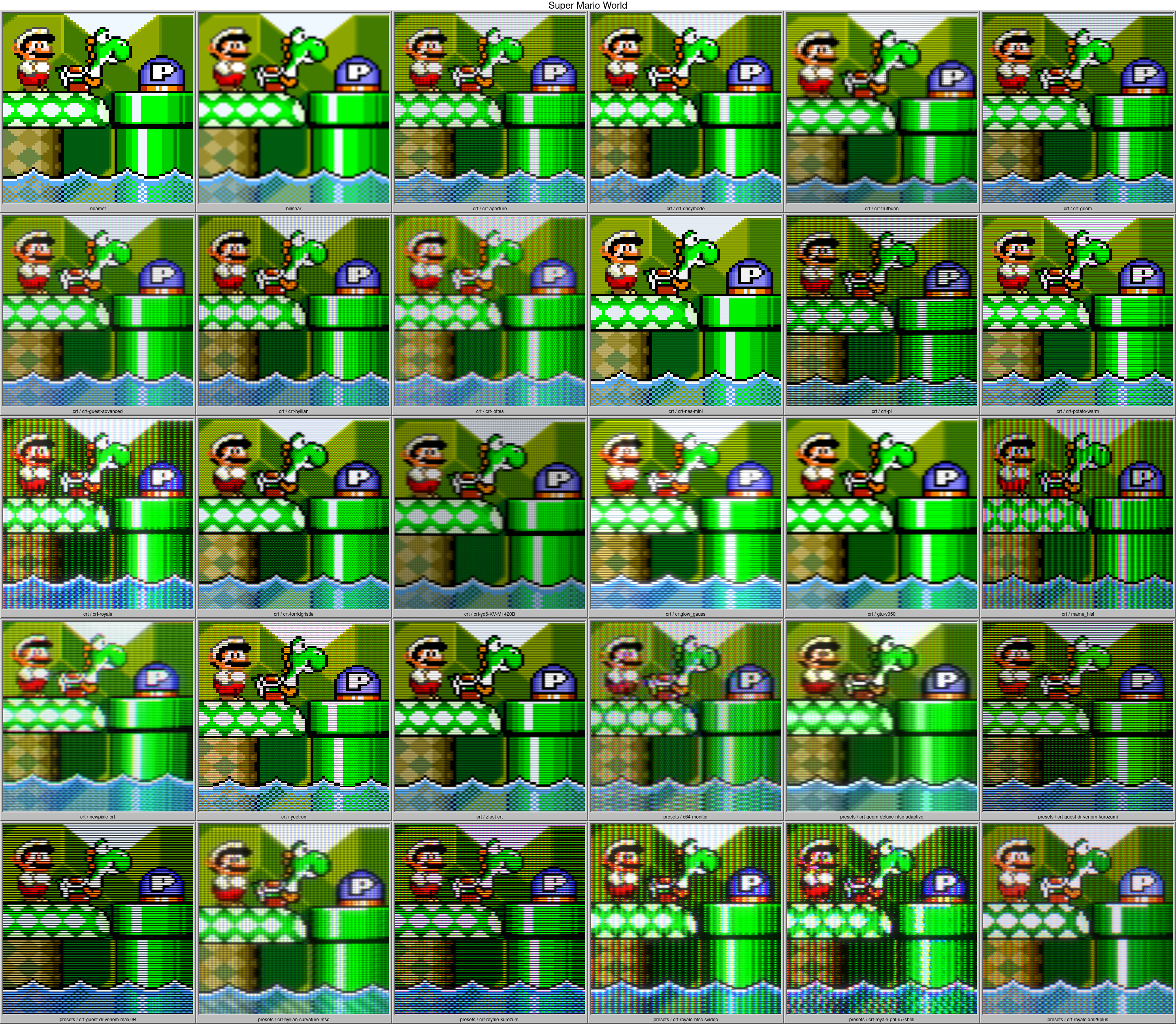

Side by Side Crops: Super Mario World

☝ Back to games overview

Nearest VS Royale
Royale VS Geom
Geom VS Guest Advanced

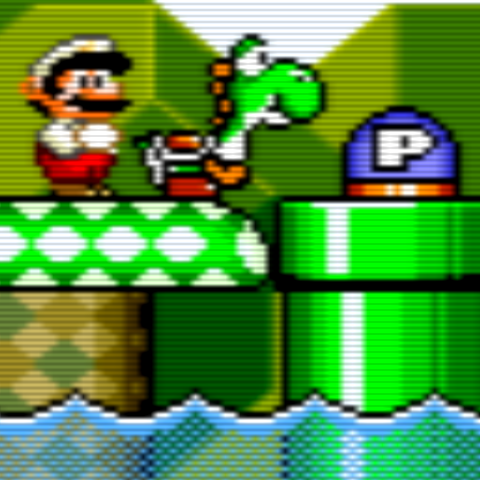

Guest Advanced VS GTU v050
GTU v050 VS Nearest

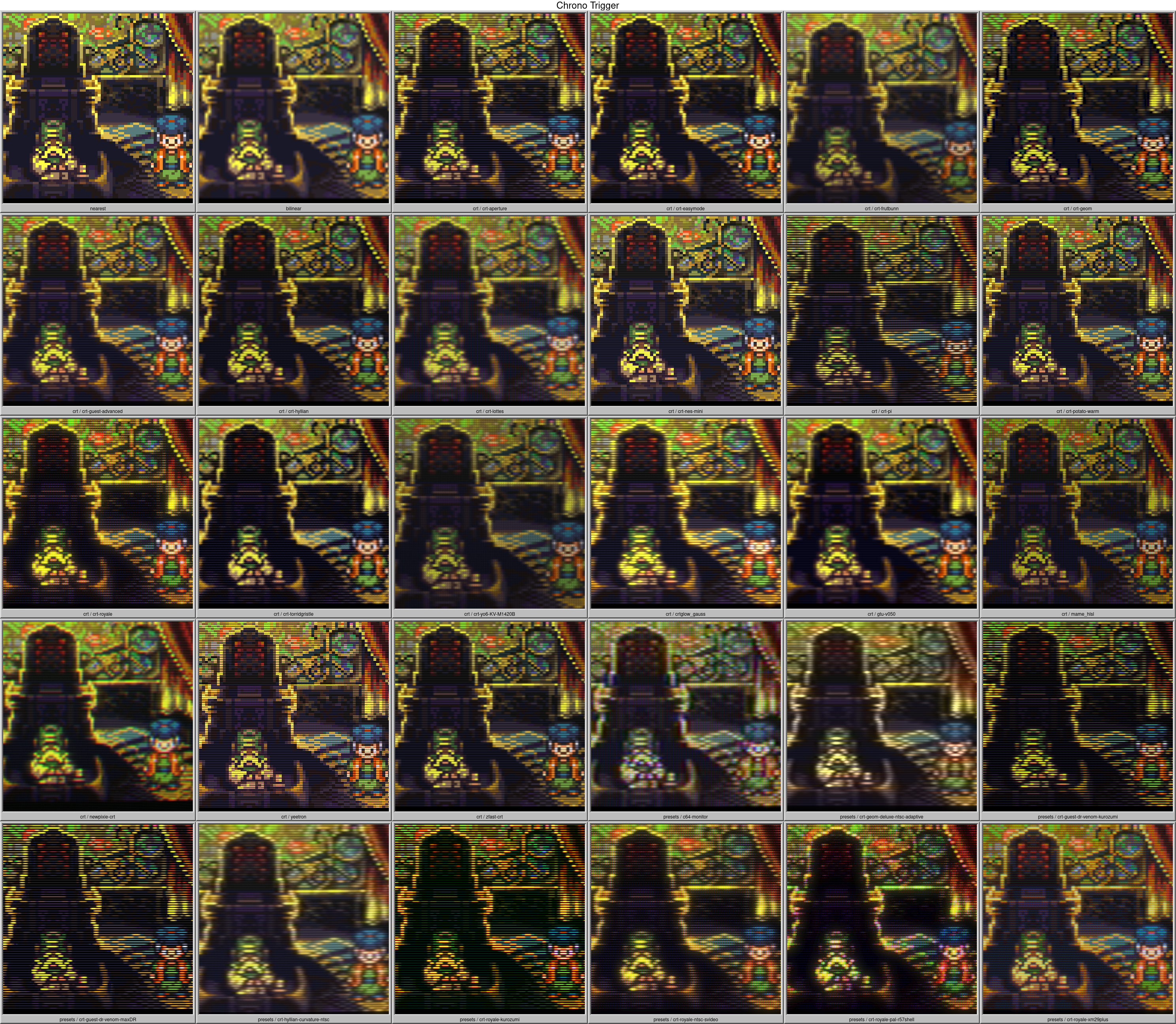

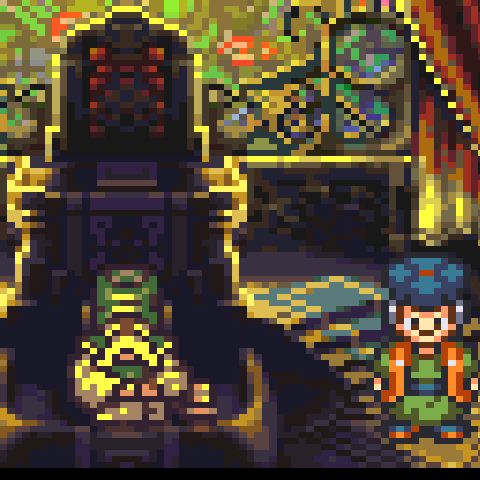

Side by Side Crops: Chrono Trigger

☝ Back to games overview

Nearest VS Royale
Royale VS Aperture
Aperture VS Zfast
Zfast VS Pi
Pi VS Nearest

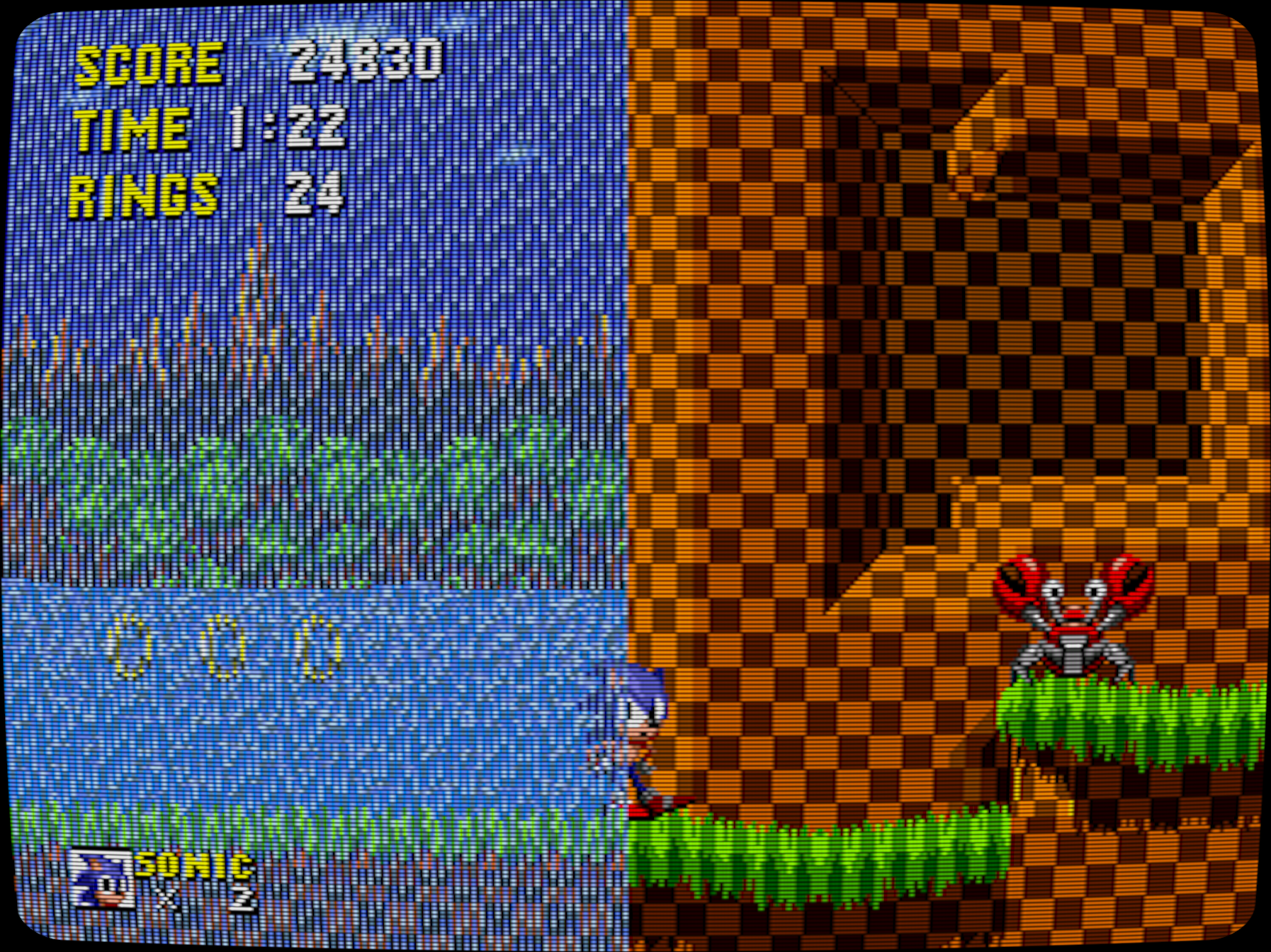

Side by Side Crops: Sonic

☝ Back to games overview

Nearest VS Royale
Royale VS Royale NTSC SVideo
Royale NTSC SVideo VS Geom Deluxe NTSC Adaptive
Geom Deluxe NTSC Adaptive VS Yeetron
Yeetron VS Nearest

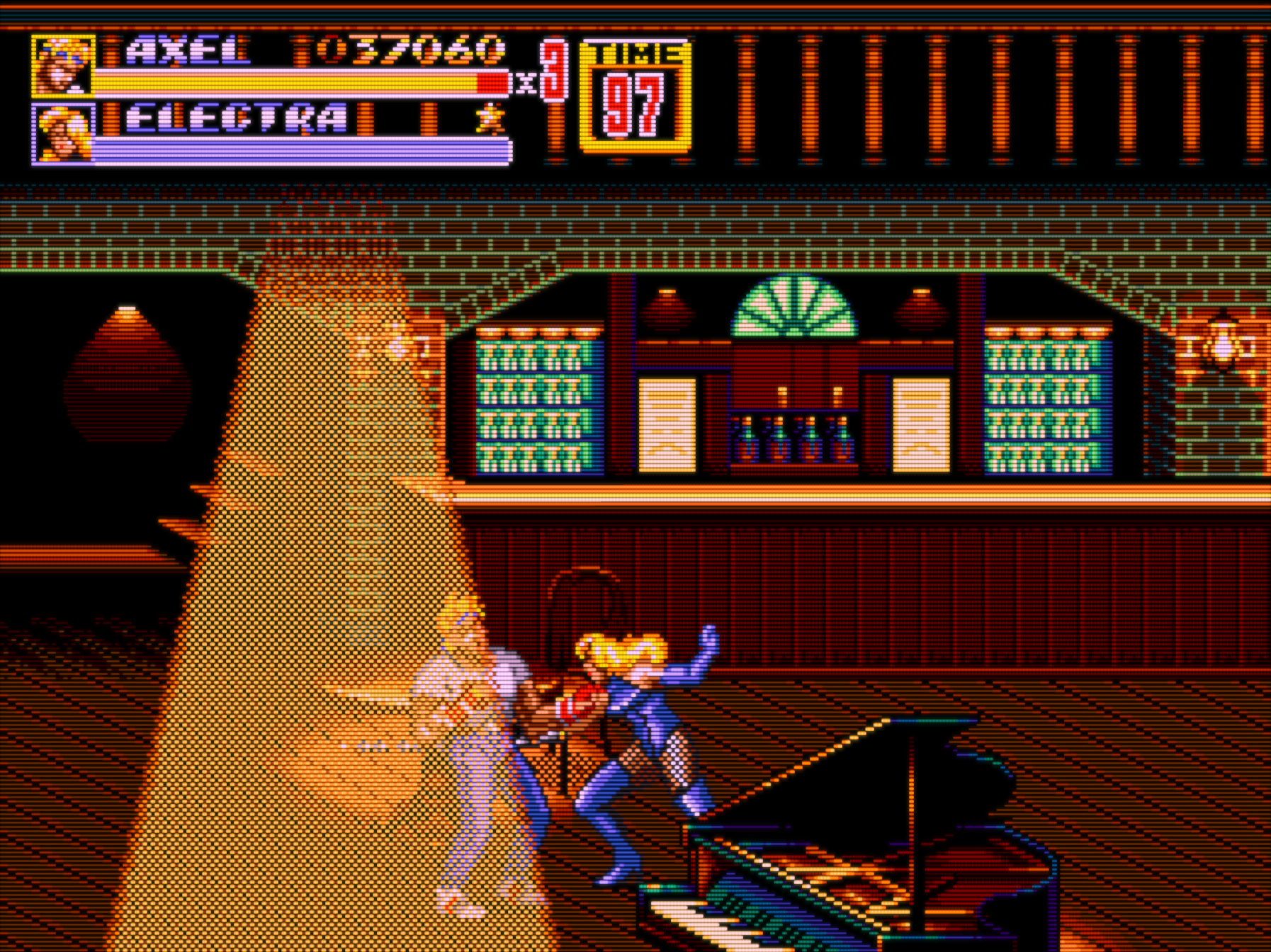

Side by Side Crops: Street of Rage 2

☝ Back to games overview

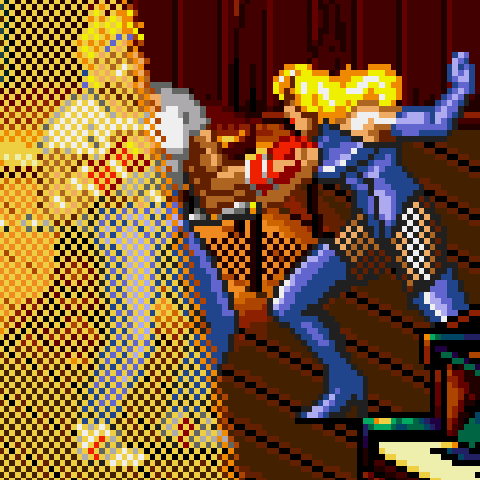

Nearest VS Royale
Royale VS GTU v050

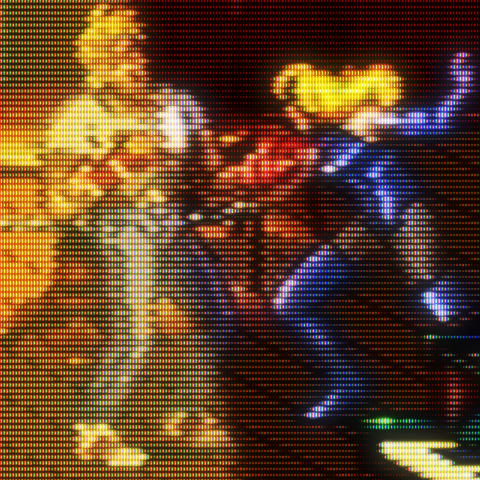

GTU v050 VS Royale NTSC SVideo
Royale NTSC SVideo VS Lottes
Lottes VS Nearest

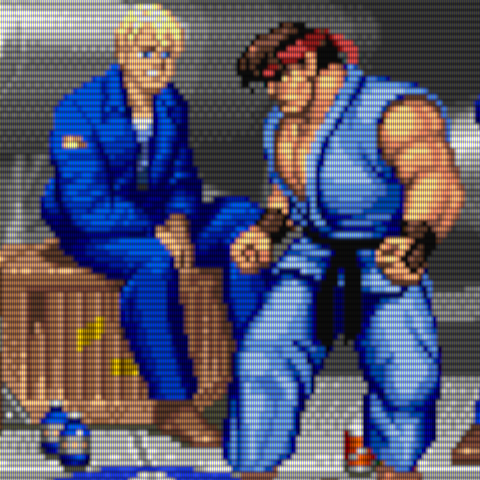

Side by Side Crops: Super Street Fighter 2

☝ Back to games overview

Nearest VS Royale

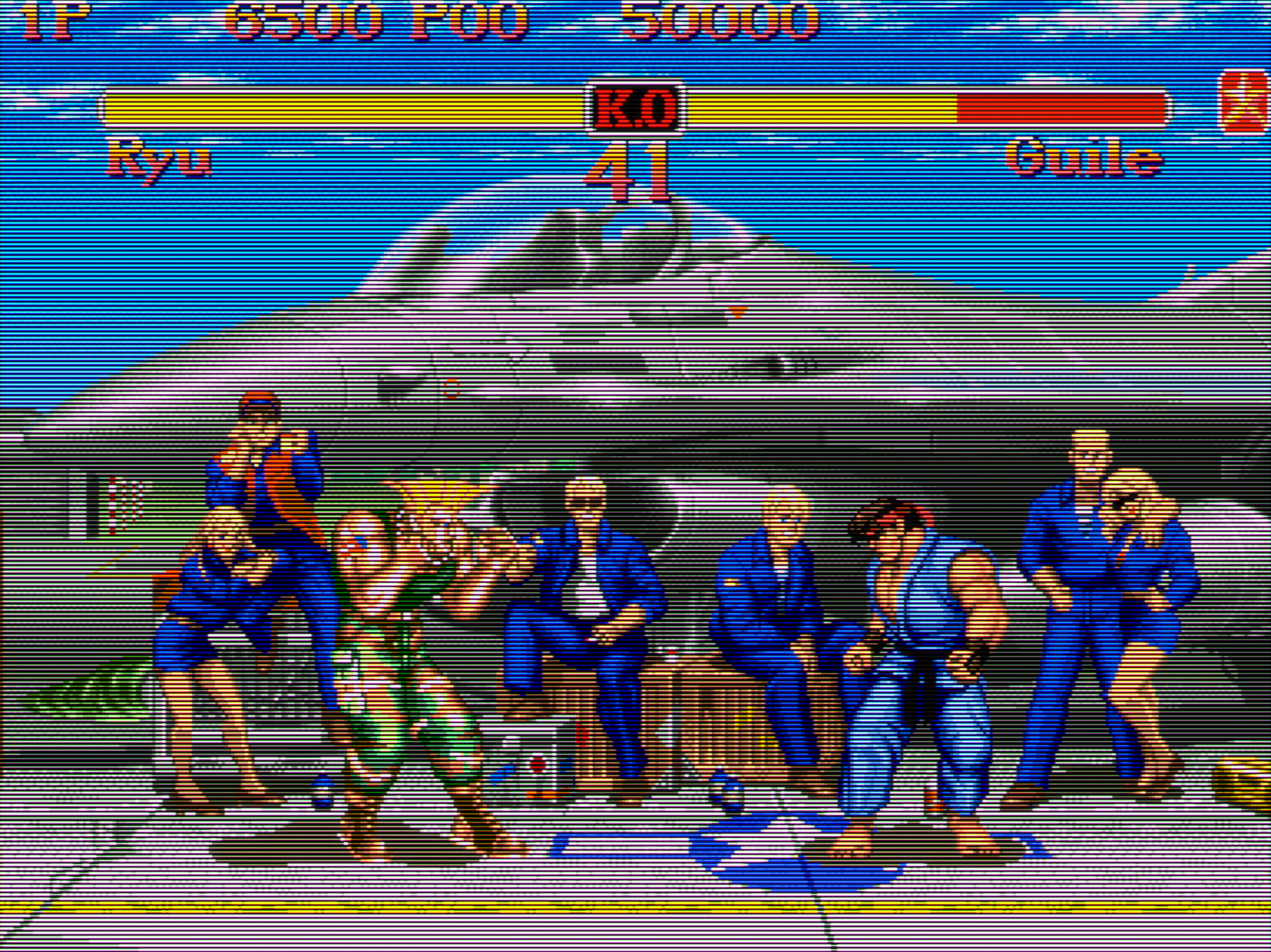

Royale VS Royale XM29Plus
Royale XM29Plus VS Hyllian

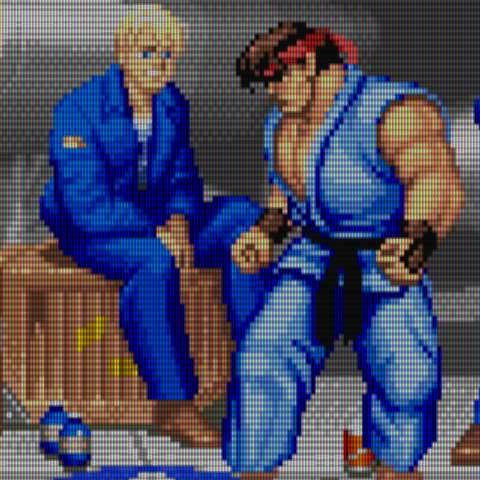

Hyllian VS MAME HLSL
MAME HLSL VS Nearest

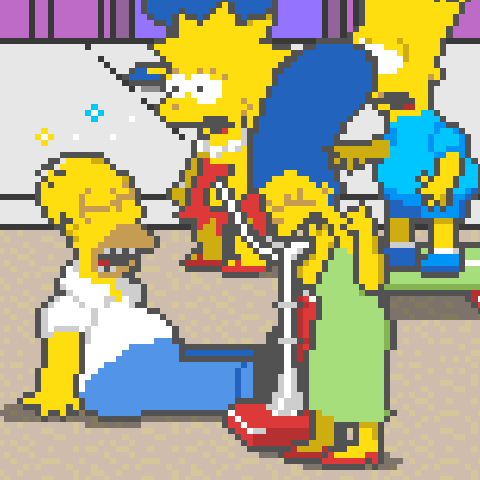

Side by Side Crops: Simpsons

☝ Back to games overview

Nearest VS Royale
Royale VS Easymode

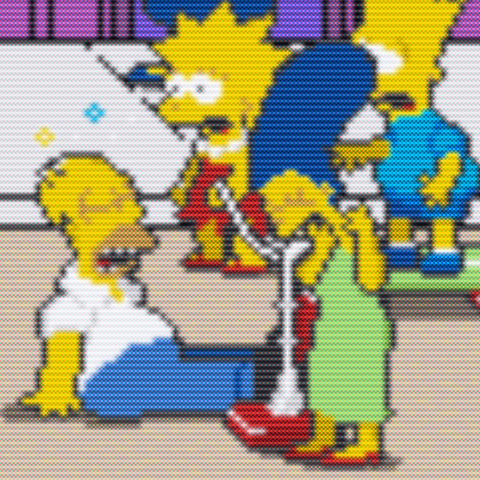

Easymode VS Torridgristle
Torridgristle VS Guest Dr Venom Kurozumi
Guest Dr Venom Kurozumi VS Nearest

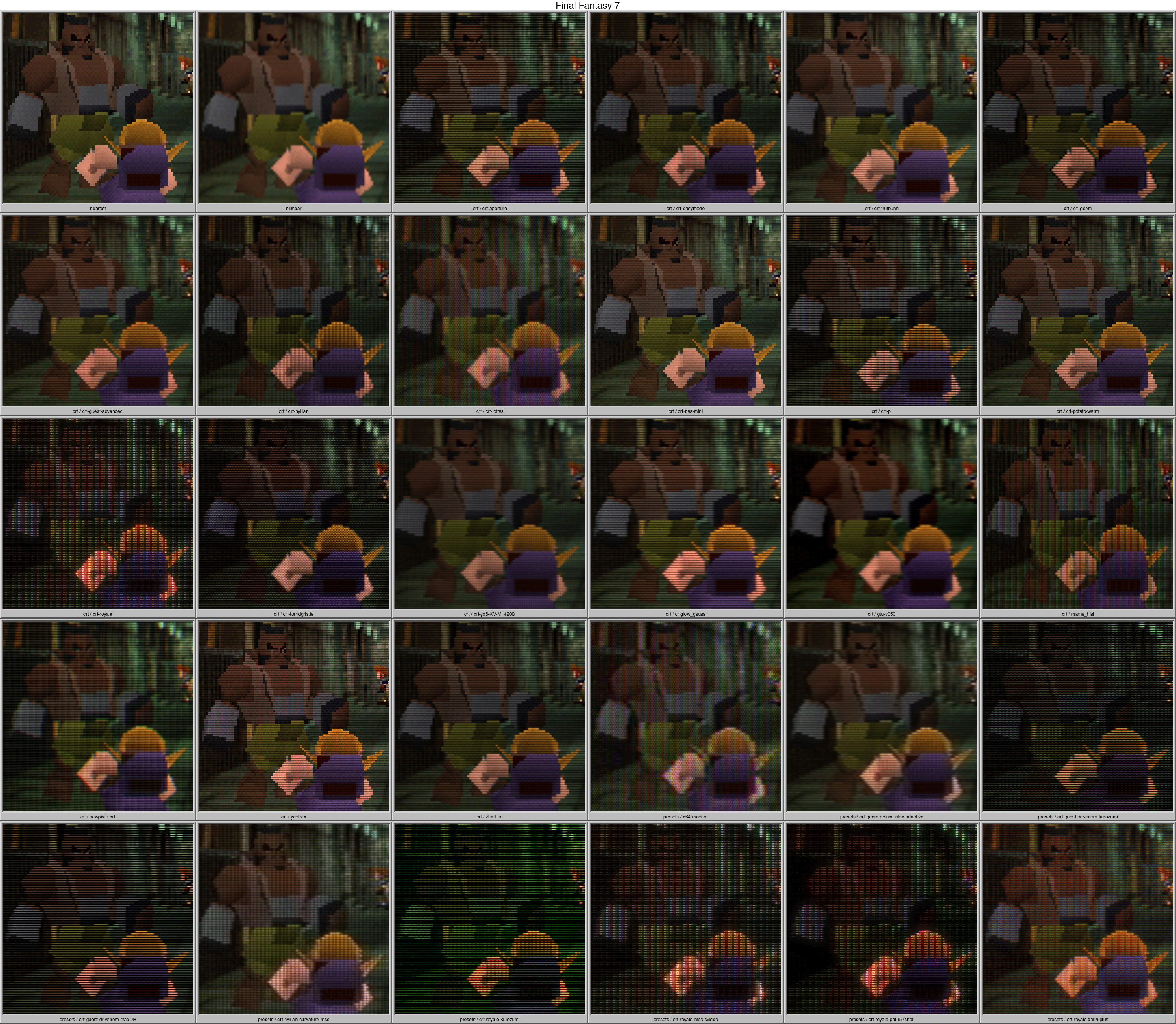

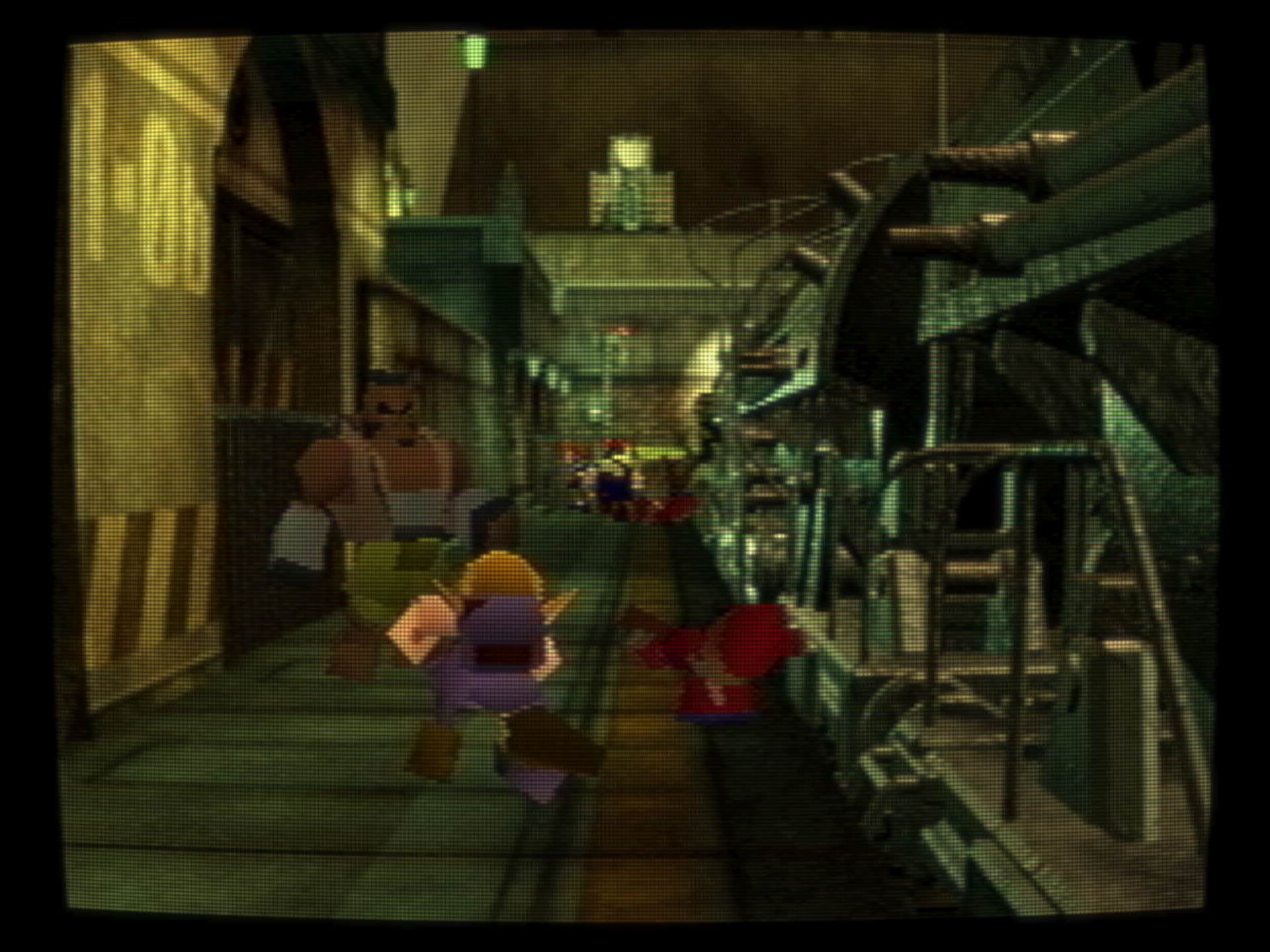

Side by Side Crops: Final Fantasy 7

☝ Back to games overview

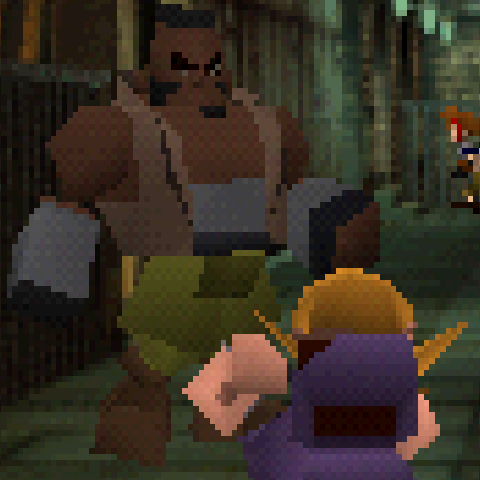

Nearest VS Royale
Royale VS yo6 KV M1420B
yo6 KV M1420B VS CRTGlow Gauss
CRTGlow Gauss VS C64 monitor
C64 monitor VS Nearest

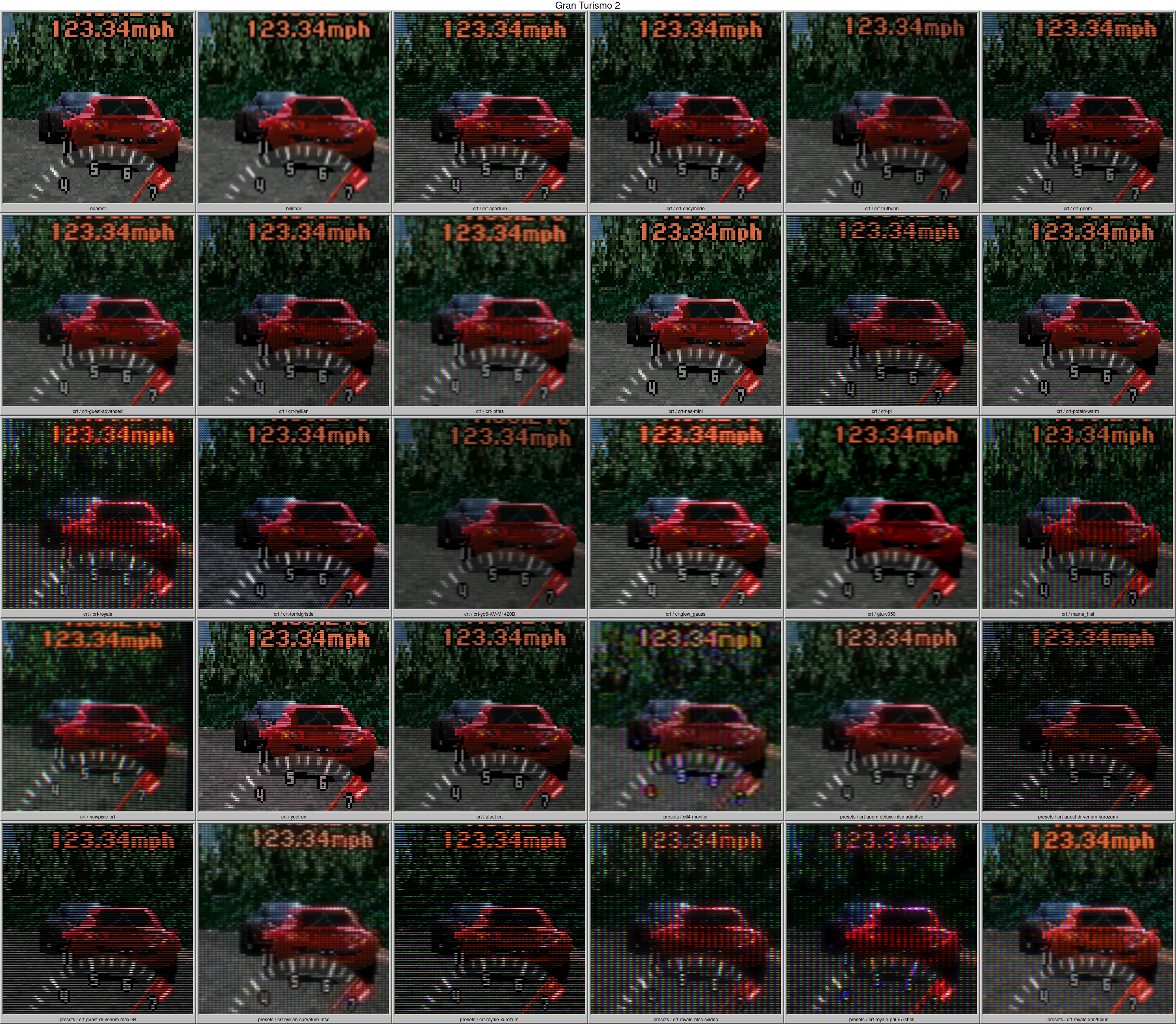

Side by Side Crops: Gran Turismo 2

☝ Back to games overview

Nearest VS Royale

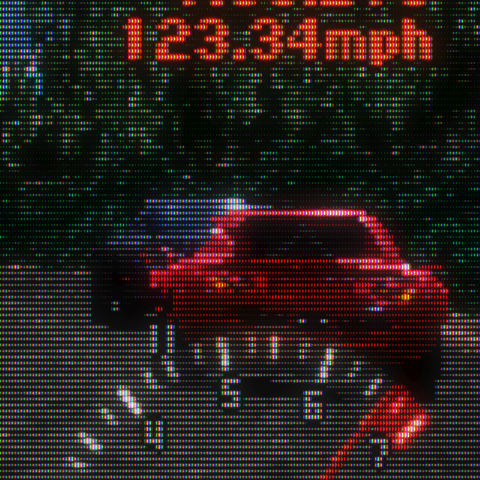

Royale VS Guest Dr Venom Max DR
Guest Dr Venom MaxDR VS Potato Warm

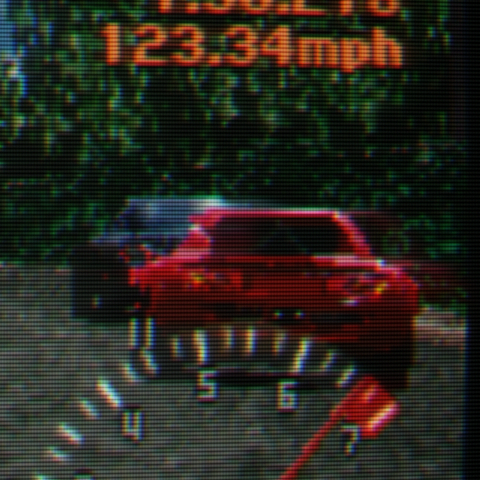

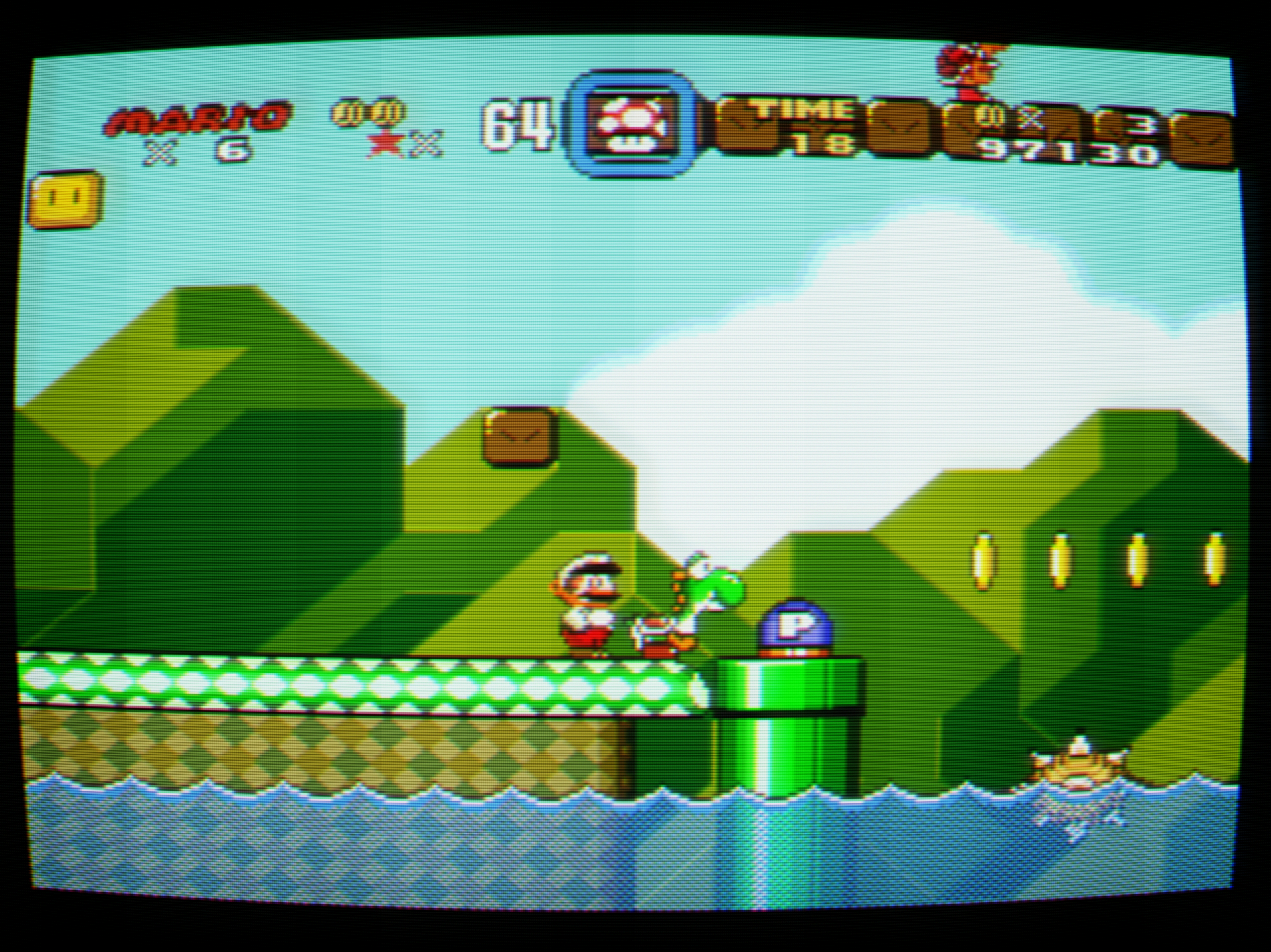

Potato Warm VS NewPixie
NewPixie VS Nearest

Side by Side Crops: Zelda – Ocarina of Time

☝ Back to games overview

Nearest VS Royale
Royale VS Royale PAL r57shell
Royale PAL r57shell VS Guest Advanced
Guest Advanced VS Bilinear
Bilinear VS Nearest

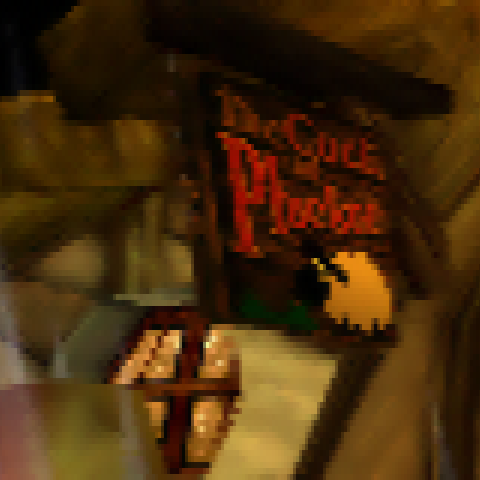

Side by Side Crops: Conker’s Bad Fur Day

☝ Back to games overview

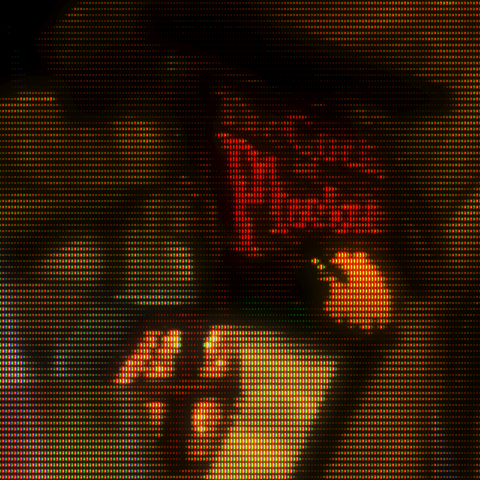

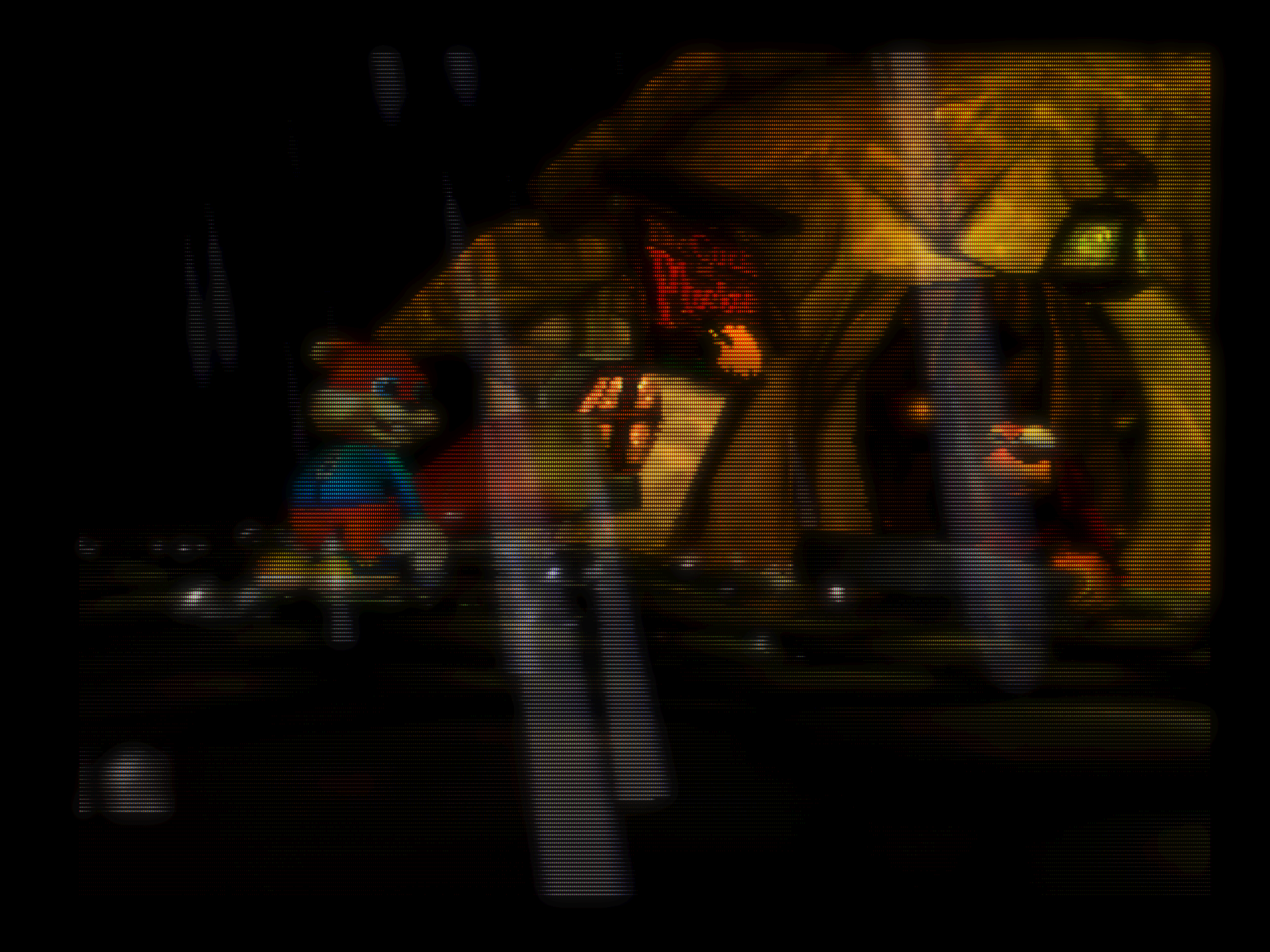

Nearest VS Royale
Royale VS Royale Kurozumi
Royale Kurozumi VS Pi
Pi VS Lottes
Lottes VS Nearest

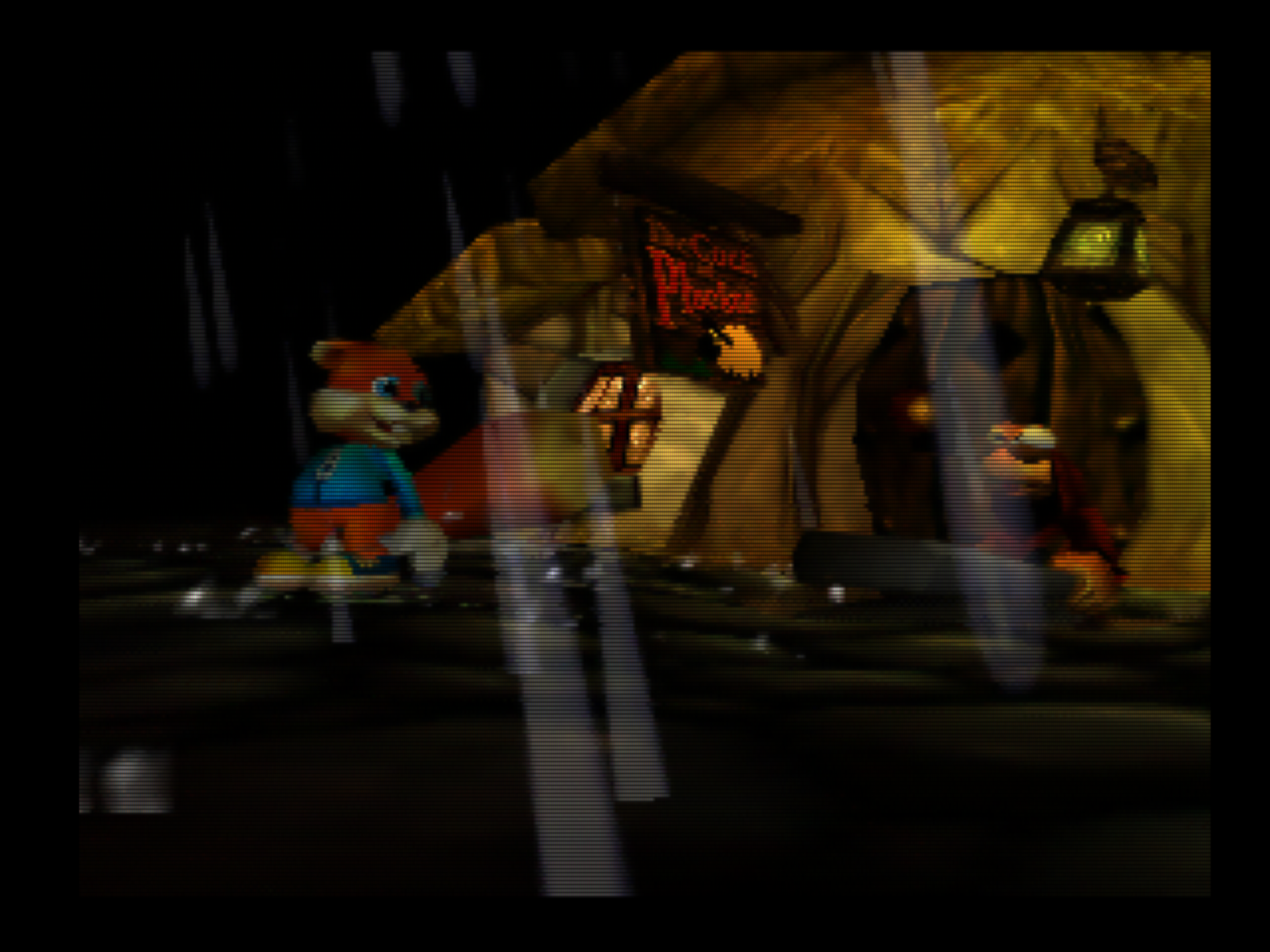

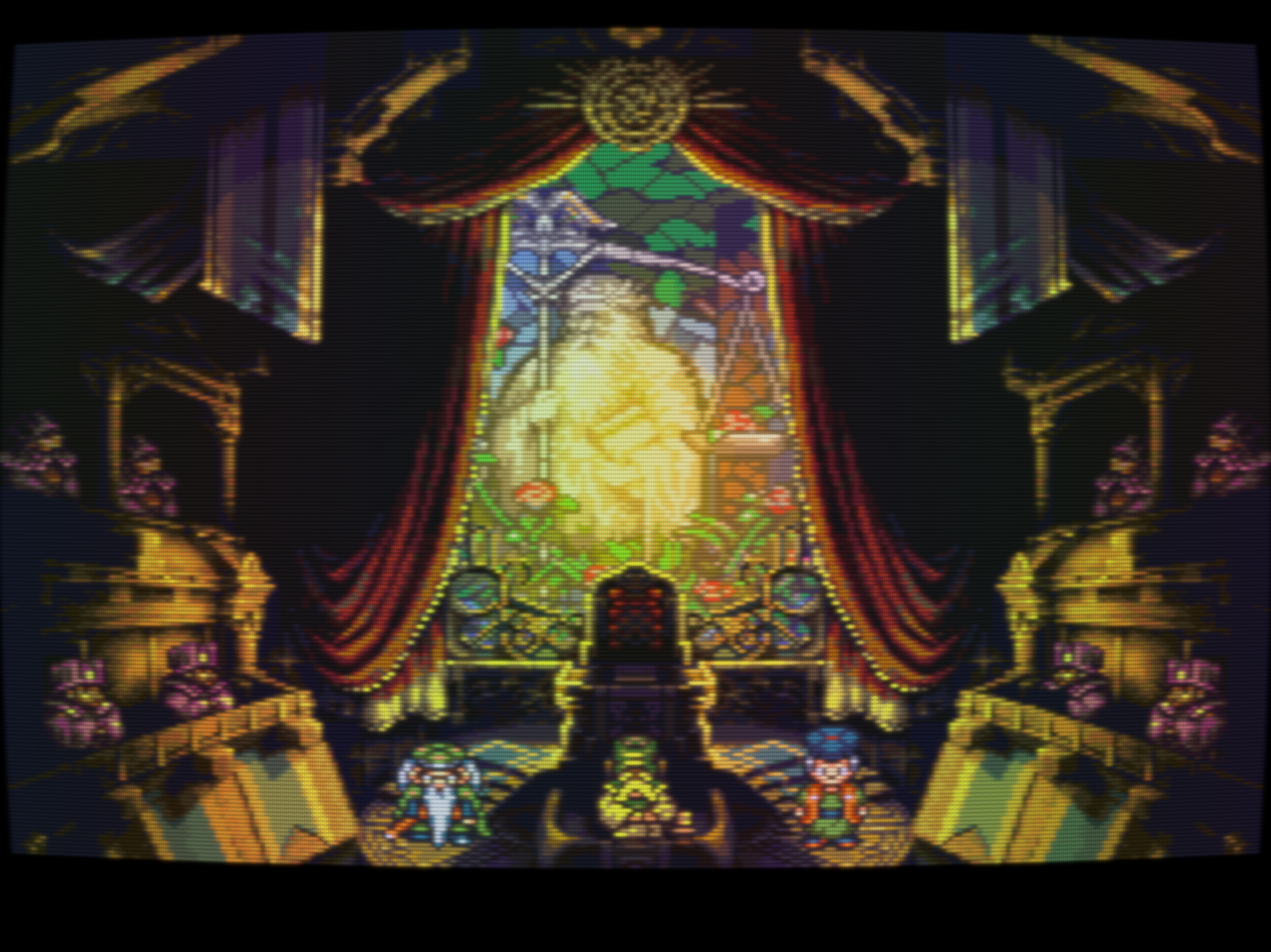

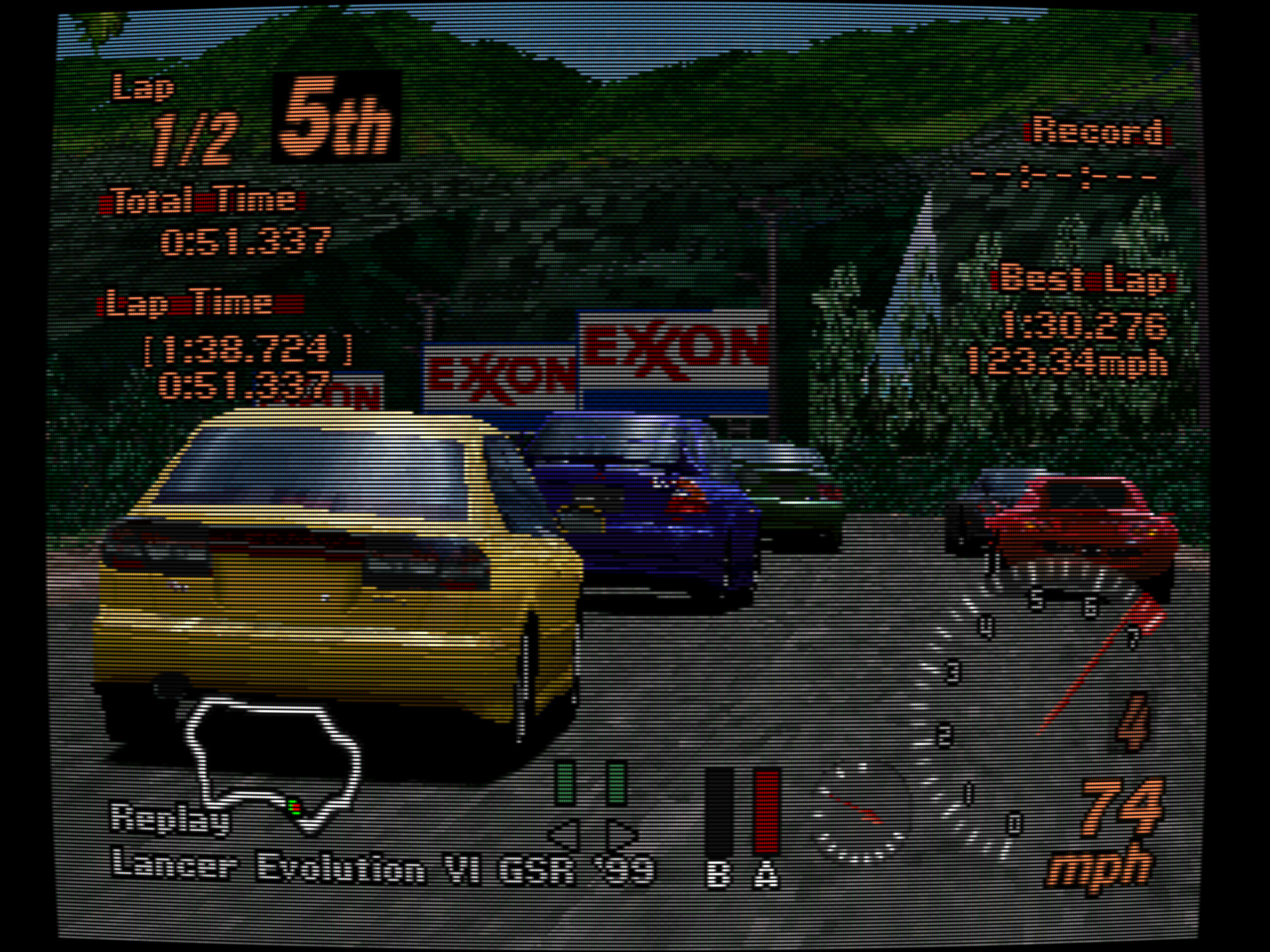

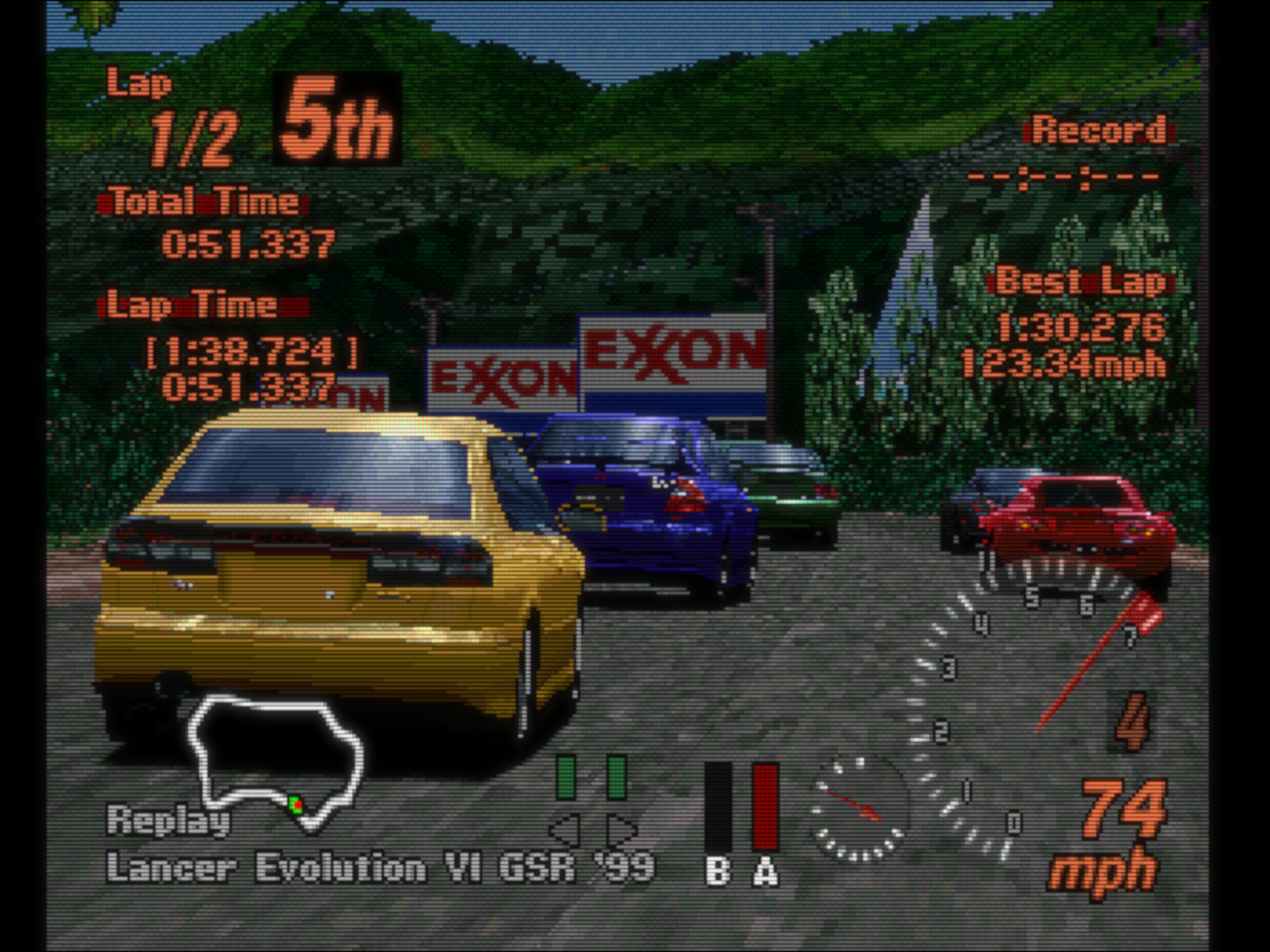

Full Sized Screenshots

In addition to the cropped images, some full sized screenshots available also. These are the files directly saved by RetroArch. Some hand picked selection:

Learn, Discuss and Share

This list is only the beginning, the real journey starts when you experiment with the settings. There are some places on this planet where you can discuss with others and share your own settings or ask related questions about RetroArch Shaders. One such place is the official Libreto RetroArch Shaders forum. Noteworthy threads are in example:
